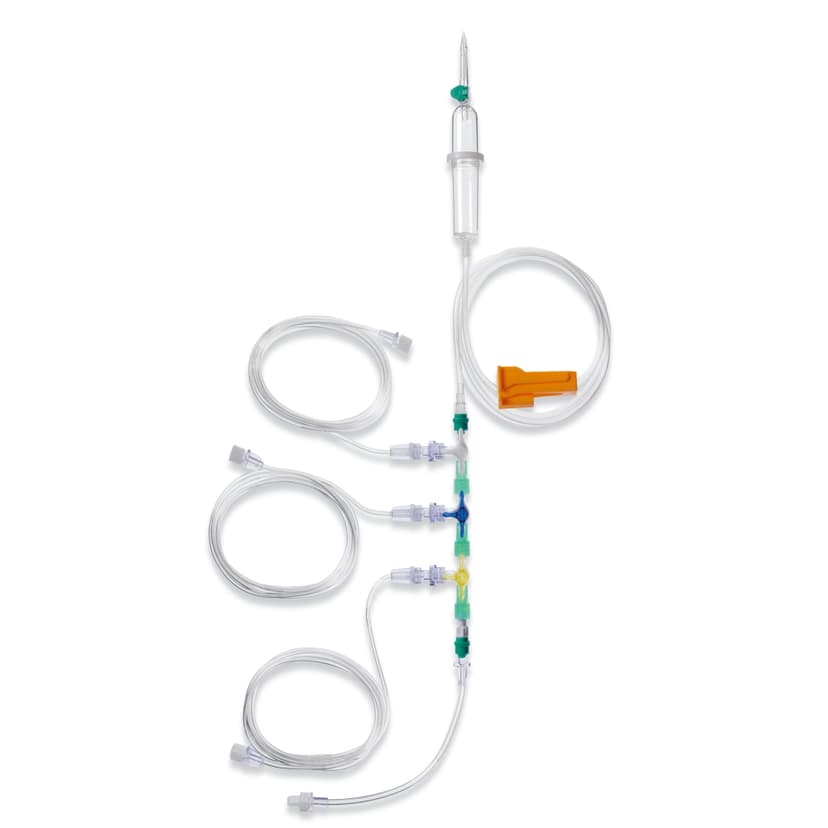

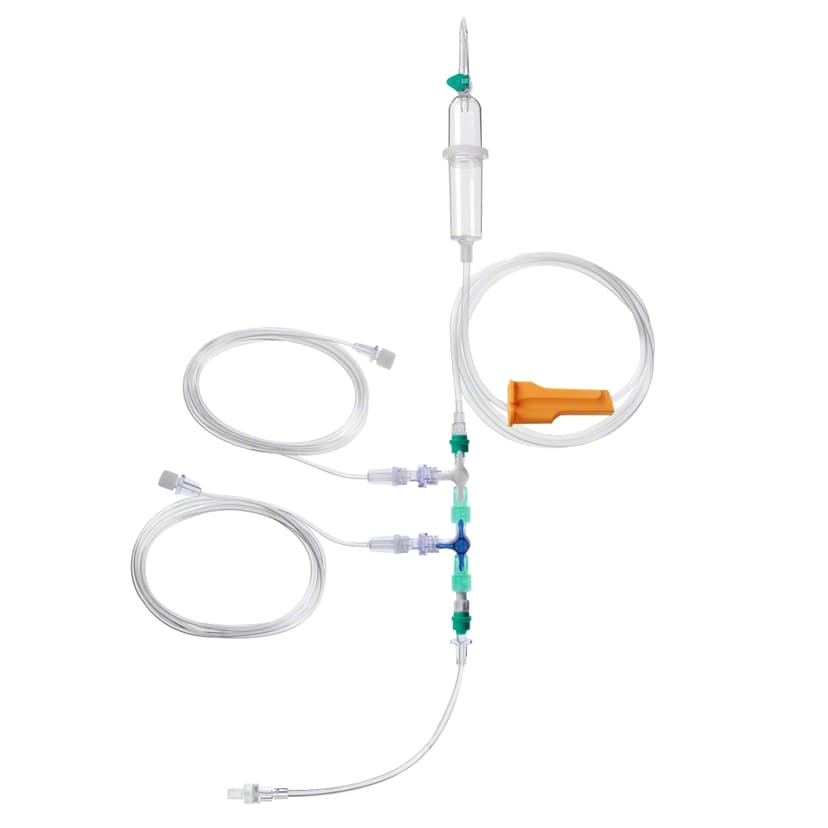

Infusionssystem zum gleichzeitigen Zusammenführen von Medikamenten für die totale intravenöse Anästhesie (TIVA)
Bestandteile:
Infusionsgerät Intrafix® Primeline oder Intrafix® SafeSet:
- Primeline:
- Flüssigkeitsfilter (Filtermembran) im Tropfkammerboden:
- mit einer Porengröße von 15 µm zum Schutz vor groben Partikeln
- SafeSet:
- AirStop-Membran (Filtermembran) im Tropfkammerboden:
- wirkt wie eine Barriere - der Eintritt von Luft in die Infusionsleitung wird verhindert;
- Partikelretention mit einer Filtereffizienz > 80% für Partikel der Größe 3 µm
- Mit endständiger PrimeStop-Kappe:
- Schutzkappe ausgekleidet mit einer hydrophoben, bakteriendichten Membran zur Vermeidung des Austritts von Flüssigkeit beim Entlüften und zum Schutz vor Kontamination (chemische und bakterielle Dichtigkeit/geschlossenes System gemäß NIOSH 1; 2; 3 )
- Scharfer Einstechdorn für leichtes Einstechen
- Bakteriendichte Belüftung mit Verschlusskappe
- Flexible Pumpkammer zum leichten und schnellen Einstellen des Flüssigkeitsspiegels
Rückschlagventil (RV):
- Erhöht die Sicherheit bei der parallelen Anwendung von Schwerkraft- und Druckinfusionen
- Verhindert eine retrograde Förderung in die Schwerkraftinfusion und erhält die Druckalarmfunktion der parallel eingesetzten Infusionspumpe
Dreiwegehahn Discofix® C:
- Arzneimittel-, lipid- und desinfektionsmittelbeständiger Dreiwegehahn
- Undichtigkeiten durch Spannungsrisse werden verhindert, was das Risiko von Kontamination und Luftembolie reduziert
- Kontrolle der 45°-Position durch "Klick"
- Druckbeständig bis 2 bar
Wichtiger Hinweis: Das TIVA-Set Intrafix® SafeSet, 2-fach, 4187009, verfügt über Dreiwegehähne Discofix®.
Original Perfusor® Leitungen:
- Reduziertes Restvolumen aufgrund eines geringen Innendurchmessers für effizienten Medikamenteneinsatz
Hinweis für die Anwendung der TIVA-Sets: Durch Lagerung, Transport und Sterilisation können sich vorkonnektierte Verbindungen gelockert haben, deshalb ist es erforderlich, dass vor Benutzung des Infusions-Regimes die Lock-Verbindungen manuell nachgezogen werden (gängige Praxis).
