MIETHKE THOMALE GUIDE
Gemeinsam mit der THOMALE GUIDE APP für das iPhone und iPad dient er als einfache Navigations- und Führungshilfe.

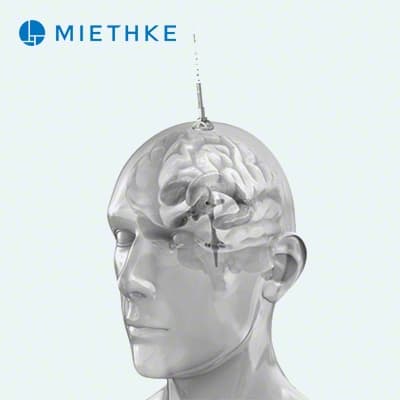

Das Prinzip beruht darauf, dass in der Sagittalebene ein rechter Winkel zur Oberfläche (Tangentialebene) immer korrekt den Ventrikel erreicht, während in der Koronarebene ein individueller Winkel eingestellt werden muss, um eine korrekte Platzierung zu ermöglichen. Dafür wird der THOMALE GUIDE mit drei Standfüßen direkt auf dem Schädelknochen und mit dem Strichmarkierungen parallel zur Mittellinie über dem Bohrloch platziert, so dass ein rechter Einfü̈hrwinkel in der Sagittalebene gewährleistet ist. In der Koronarebene kann über eine Winkeleinstellung am THOMALE GUIDE ein individueller Winkel bestimmt werden. Die Rotation der Katheterführung, die über die Schienen geführt wird, erfolgt ü̈ber einen sehr nah über dem Bohrloch liegenden Drehpunkt.
